10P, Hinge-Top Power Pedestal

125 Amp with Circuit Breaker Setup

10P, Hinge-Top Power Pedestal - Surface Mount - Image 2

10P, Hinge-Top Power Pedestal - Surface Mount - Image 3

10P, Hinge-Top Power Pedestal - Surface Mount - Image 4

Key Features

The 10P Power Pedestal expands the Pedoc lineup with a higher-capacity solution rated up to 125 Amps. Built for commercial and public environments, it brings power distribution into a single, adaptable unit —configured to meet specific site requirements and reconfigured when those requirements evolve. Suited for new construction and retrofit applications alike.

High-Capacity Power: Rated up to 125 amps, supports up to three 2″ conduit entries support incoming and outgoing feeders.
Equipped: Neutral and ground bars are preinstalled. A 35mm DIN-rail bracket accommodates on-site breaker configuration.
Maintenance-free: Welded stainless-steel construction with a durable powder-coat finish ensures exceptional weather resistance and long service life.
Secure Access: Lockable hinged cover protects internal components from unauthorized access and weather exposure while allowing easy serviceability.

QUICK OVERVIEW

VIDEO OVERVIEW

Watch this quick video walkthrough to explore key pedestal capabilities and installation advantages.

WHAT YOU'LL LEARN:

✔
APPLICATIONS: Ideal commercial, municipal, and recreation site installation setups.
✔
BENEFITS: How corrosion-resistant materials and secure design lower long-term maintenance costs.
✔
KEY FEATURES: Internal component layout, enclosure access, and mounting configuration options.

WATCH VIDEO

Play

BUILD YOUR PEDESTAL

SELECT CONFIGURATION

Add to quote

QUICK DOWNLOADS

SPECIFICATIONS

INSTALLATION GUIDE

SELL SHEET

TECHNICAL INFORMATION

SPECIFICATIONS

PART NUMBERS AND DRAWINGS

FINISHES

SPECIFICATIONS

Electrical

Max. Amperage	125 A Max
Devices	Removable device mounting plate supports up to 3 receptacles (devices not supplied)
Components	Includes distribution block, 35mm DIN-rail bracket, grounding hardware, neutral and ground bars
Grounding Hardware	Pre-installed stainless grounding hardware
Dimensions	See drawings
Conduit Feeds	Open base for three 2″ raceways
High & Low Voltage	N/A

Material & Design

Above Grade Heights	30″, 36″, 42″, 48″
Construction	Welded pedestal body, base, cover and removable front access panel (security screw included)
Material	14-gauge (body and cover) and 7-gauge (base) T304 stainless steel; optional upgrade to T316
Finish Options	UV-rated powder coat in Black, Gray, Bronze, Green, Brown; brushed stainless; or custom color (paint chip required)
Cover Type	Self-closing, lockable and NEMA 3R rated
Pedestal Mounting	Welded integral base; 3/8″ concrete anchors included

Standards & Certs

Compliance	UL Listed (USA & Canada) Standard 1773; NEMA 3R rated for wet locations
ADA Compliance	30″ heights and above meet ADA standards
Country of Origin	Made in USA – Mt. Prospect, IL

Additional

Customization	Custom colors available (paint chip required)

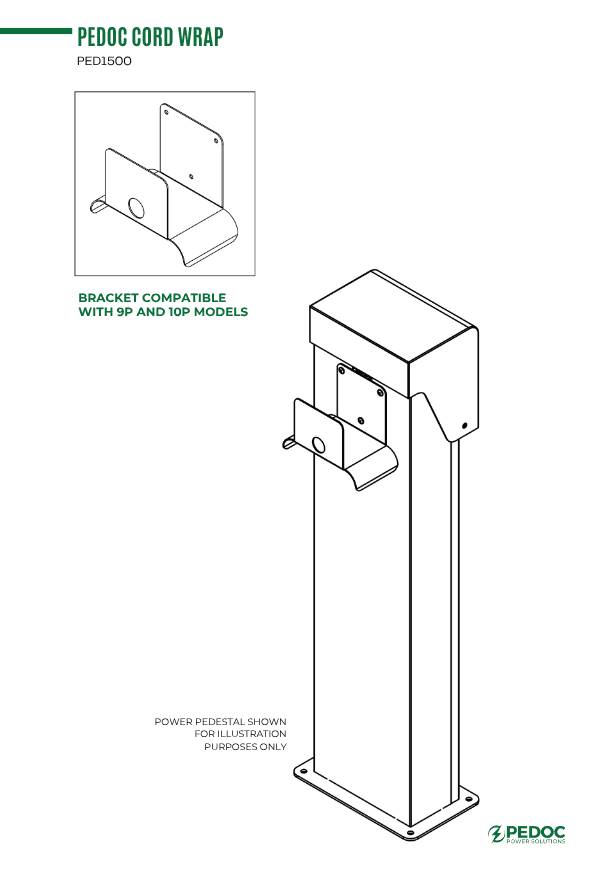

Add-ons	Optional cord wrap accessory

PART NUMBERS AND DRAWINGS

Drawings

30″ HEIGHT	36″ HEIGHT	42″ HEIGHT	48″ HEIGHT
Download PDF	Download PDF	Download PDF	Download PDF

Part Numbers

Device Mtg. Plate -280
50/50/20, 50/30/20, or 30/30/20 Amp

Finish Type	30″ Height	36″ Height	42″ Height	48″ Height
Coated (-C)	10P30-C-HT-*-280	10P36-C-HT-*-280	10P42-C-HT-*-280	10P48-C-HT-*-280
Brushed (-SS)	10P30-SS-HT-280	10P36-SS-HT-280	10P42-SS-HT-280	10P48-SS-HT-280

Device Mtg. Plate -281
50 or 30 Amp

Finish Type	30″ Height	36″ Height	42″ Height	48″ Height
Coated (-C)	10P30-C-HT-*-281	10P36-C-HT-*-281	10P42-C-HT-*-281	10P48-C-HT-*-281
Brushed (-SS)	10P30-SS-HT-281	10P36-SS-HT-281	10P42-SS-HT-281	10P48-SS-HT-281

Device Mtg. Plate -282
50/20/20 or 30/20/20 Amp

Finish Type	30″ Height	36″ Height	42″ Height	48″ Height
Coated (-C)	10P30-C-HT-*-282	10P36-C-HT-*-282	10P42-C-HT-*-282	10P48-C-HT-*-282
Brushed (-SS)	10P30-SS-HT-282	10P36-SS-HT-282	10P42-SS-HT-282	10P48-SS-HT-282

Device Mtg. Plate -283
50/20 or 30/20 Amp

Finish Type	30″ Height	36″ Height	42″ Height	48″ Height
Coated (-C)	10P30-C-HT-*-283	10P36-C-HT-*-283	10P42-C-HT-*-283	10P48-C-HT-*-283
Brushed (-SS)	10P30-SS-HT-283	10P36-SS-HT-283	10P42-SS-HT-283	10P48-SS-HT-283

Device Mtg. Plate -284
20/20/20 Amp

Finish Type	30″ Height	36″ Height	42″ Height	48″ Height
Coated (-C)	10P30-C-HT-*-284	10P36-C-HT-*-284	10P42-C-HT-*-284	10P48-C-HT-*-284
Brushed (-SS)	10P30-SS-HT-284	10P36-SS-HT-284	10P42-SS-HT-284	10P48-SS-HT-284

Device Mtg. Plate -285
20/20 Amp

Finish Type	30″ Height	36″ Height	42″ Height	48″ Height
Coated (-C)	10P30-C-HT-*-285	10P36-C-HT-*-285	10P42-C-HT-*-285	10P48-C-HT-*-285
Brushed (-SS)	10P30-SS-HT-285	10P36-SS-HT-285	10P42-SS-HT-285	10P48-SS-HT-285

Device Mtg. Plate -286
20 Amp

Finish Type	30″ Height	36″ Height	42″ Height	48″ Height
Coated (-C)	10P30-C-HT-*-286	10P36-C-HT-*-286	10P42-C-HT-*-286	10P48-C-HT-*-286
Brushed (-SS)	10P30-SS-HT-286	10P36-SS-HT-286	10P42-SS-HT-286	10P48-SS-HT-286

Part Numbering Guide

Type	Height	Finish Type	Cover	Finish Color	Device Mtg Plate
10P (always)	30, 36, 42, 48	-C (coated S.S.) -SS (brushed S.S.)	-HT (hinge-top)	-B (black), -G (gray), -BRZ (bronze), -GN (green), -BR (brown), -CSTM (custom) Leave blank if “SS” finish	-280, -281, -282, -283, -284, -285, -286 See drawings for configurations

FINISHES

Outdoor-Rated Powder Coat Finishes (Standard & Custom Options)

These heavy-duty finishes are UV- and corrosion-resistant for year-round outdoor use. Colors shown are representative only. Send an email to info@pedocpower.com to request a sample chip or inquire about custom options.
